CAMERA |
|
|
|---|---|---|
|
Image Sensor: |
| |
1/2.8" Progressive Scan CMOS |
|
Signal System: |
| |
PAL/NTSC |
|
Min. Illumination: |
| |
0.0014Lux @ (F1.0, AGC ON), 0 Lux with Light |
|
Shutter time: |
| |
1/3 s to 1/100,000 s |
|
Slow shutter: |
| |
Support |
|
Lens: |
| |
4 mm, horizontal FOV: 94°, vertical FOV: 48°, diagonal FOV: 115° |
|
Lens Mount: |
| |
M16 |
|
Adjustment Range: |
| |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|
Day& Night: |
| |
Auto |
|
Wide Dynamic Range: |
| |
120 dB |
|
Digital noise reduction: |
| |
3D DNR |
|
Focus: |
| |
Fixed |
|
|
|
|
|
Compression Standard |
|
|
|
Video Compression: |
| |
H.265+/H.265/H.264+/H.264/MJPEG |
|
Video bit rate: |
| |
32Kbps~16Mbps |
|
|
|
|
|
Image |
|
|
|
Max. Image Resolution: |
| |
2688 × 1520 |
|
Frame Rate: |
| |
50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
|
Sub Stream: |
| |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
|
Third Stream: |
| |
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) |
|
Image Enhancement: |
| |
BLC/3D DNR/HLC |
|
Image Settings: |
| |
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
|
Day/Night Switch: |
| |
Day/Night/Auto/Schedule |
|
|
|
|
|
Network |
|
|
|
Network Storage: |
| |
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
|
Protocols: |
| |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
|
General Function: |
| |
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
|
System Compatibility: |
| |
ONVIF (Profile S, Profile G),ISAPI |
|
|
|
|
|
Interface |
|
|
|
Communication Interface: |
| |
1 RJ45 10M / 100M Ethernet interface |
|
On-board storage: |
| |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
|
Reset Button: |
| |
Yes |
|
|
|
|
|
Smart Feature-set |
|
|
|
Behavior Analysis: |
| |
Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
|
Line Crossing Detection: |
| |
Cross a pre-defined virtual line |
|
Intrusion Detection: |
| |
Enter and loiter in a pre-defined virtual region |
|
Region Entrance: |
| |
Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
|
Region Exiting: |
| |
Objects removed from the pre-defined region, such as the exhibits on display. |
|
|
|
|
|
General |
|
|
|
Operating Conditions: |
| |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) |
|
Power Supply: |
| |
12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3) |
|
Power Consumption: |
| |
12 VDC, 0.7 A, max. 9.5 W |
|
Weather Proof: |
| |
IP67 |
|
Dimensions: |
| |

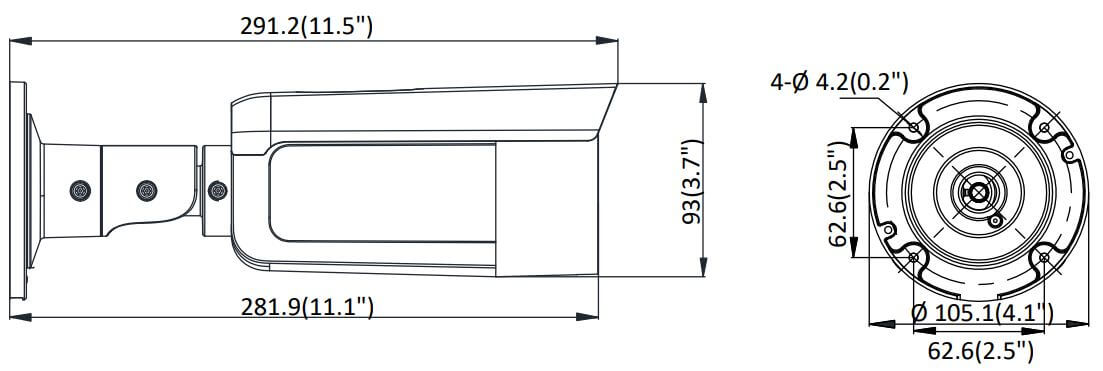

Camera: Φ 105 × 290.7 mm (Φ 4.1" × 11.4") |
|
Weight: |
| |
Camera: 1200 g (2.6 lb.) |
