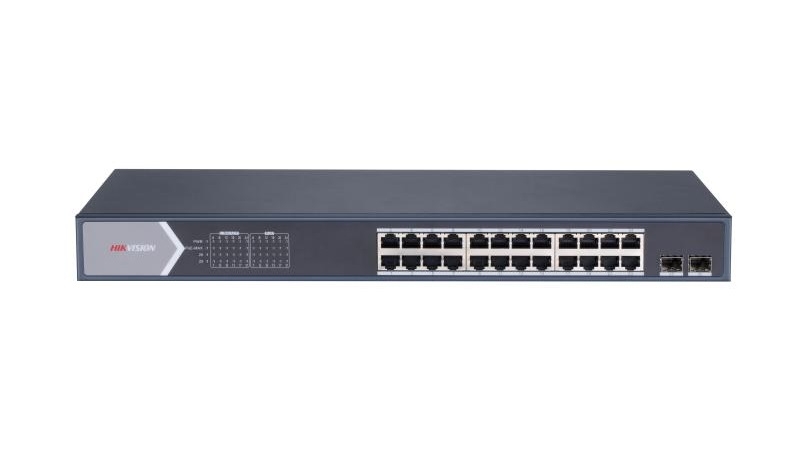

Switch PoE 24cổng (2 cổng SFP)-DS-3E0526P-E/M

Thương hiệu: Hikvision | Tình trạng: Còn hàng
1₫
Số lượng:

             General

  • ShellMetal material
  • Net Weight2.92 kg (6.44 lb)
  • Gross Weight4.12 kg (9.08 lb)
  • Dimensions (W × H × D)440 mm × 44 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
  • Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply100-240 VAC, 50/60 Hz, Max. 4 A;
  • Max. Power Consumption250 W
  • Power Consumption In Idle25 W
  • Installation ModeRack (equipped with mounting ears)
  • Surge Protection6 KV
  • Network Parameters
  • Các Cổng24 × Gigabit PoE port,2 × Gigabit fiber optical port
  • MAC Address Table8 K
  • Switching Capacity52 Gbps
  • Packet Forwarding Rate38.69 Mpps
  • Internal Cache4.1 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af;IEEE 802.3at;
  • PoE Power PinEnd-span: 1/2(+), 3/6(-)
  • PoE PortPoE: Ports 1 to 24
  • Max. Port Power30 W
  • PoE Power Budget225 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Chemistry

    CE-RoHS (201165EU);

    WEEE (201219EU);

    Reach (Regulation (EC) No.19072006)



24 Port Gigabit Unmanaged POE Switch

  • 24 × Gigabit PoE port, 2 × Gigabit SFP fiber optical port.
  • IEEE 802.3at/af standard.
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
  • 6 KV surge protection for PoE ports
  • PoE power management
  • Gigabit network access
  • Wire-speed forwarding
  • Store-and-forward switching
  • Solid high-strength metal shell
