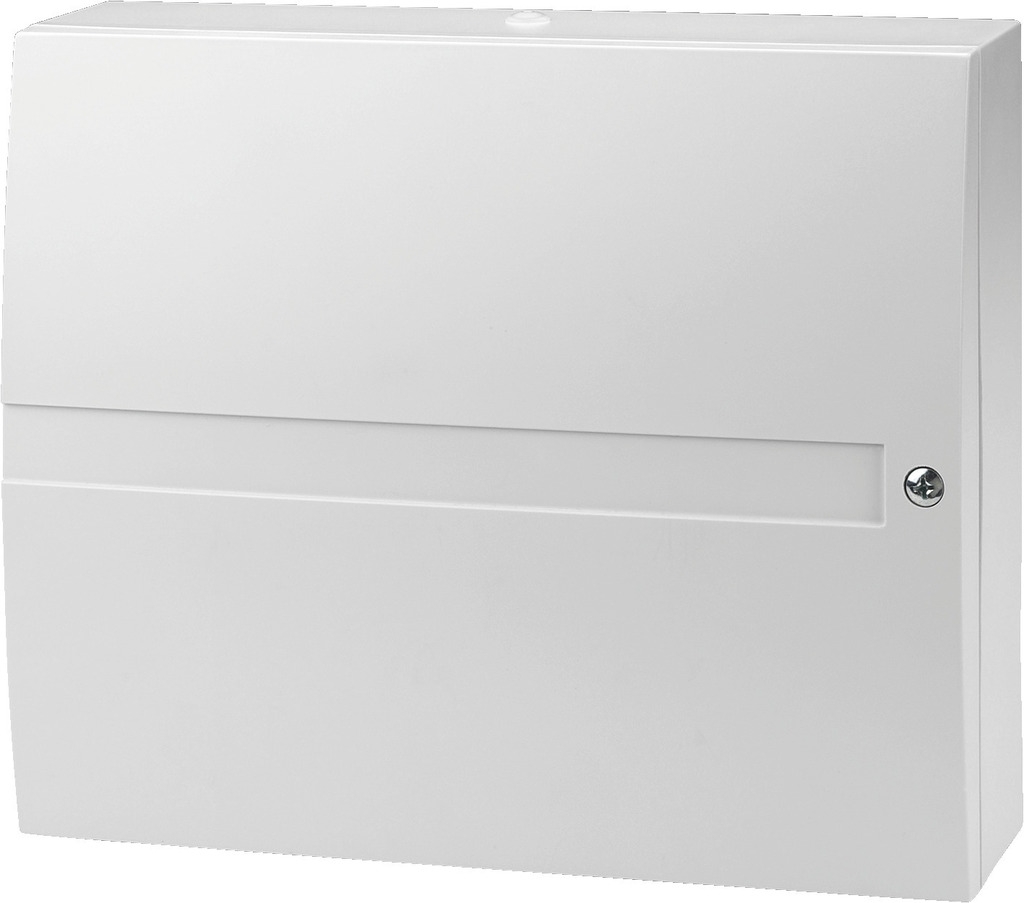

Bộ trung tâm báo động thông minh JABLOTRON JA-103KRY
-Bộ trung tâm báo động thông minh JA-103KRY bao gồm 50 thiết bị và 32PG output.
-Kết nối mạng LAN, GSM và radio module.
-Ứng dụng: Bộ trung tâm là lựa chọn lý tưởng để bảo vệ ngôi nhà của bạn, văn phòng và công ty nhỏ.
-Bộ trung tâm báo động thông minh gồm: JA-111R radio module và JA-192Y GSM/GPRS communicator.
-JA-103KRY Control panel with LAN, GSM and radio module
-The core element of the JABLOTRON 100+ security system. A control panel that is ideal for protecting family houses, offices and smaller companies.
The required adjustments and sizing of the system are programmed through the F-Link software (from version 2.0.0).
The JA-103K control panel offers:
-50 wireless or bus devices.
-50 users.
-8 sections.
-32 programmable PG outputs.
-20 mutually independent calendar events.
-8 user SMS and voice reports.
-5 ARCs can be set.
-5 selectable protocols for an ARC

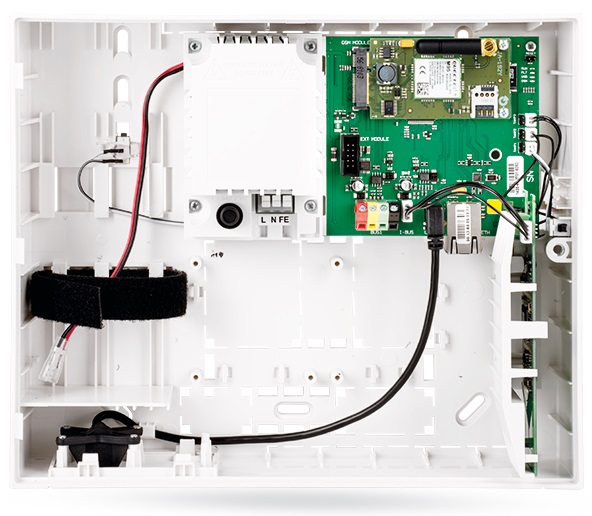

The control panel contains:
-A JA-111R radio module
-A JA-192Y GSM/GPRS communicator
The control panel also has:
-1 terminal board for bus connection
The control panel also offers functions such as:
-Maintenance.
-Day/night mode.
-Short departure response.
-Automatic setting.
-Advanced calendar features.
Những thiết bị không tương thích với bộ trung tâm:
-JA-180A (wireless outdoor siren)
-JA-154J (bi-directional remote control)
-JA-190X (PSTN communicator module)
Những thiết bị tương thích với bộ trung tâm trong các điều kiện khác:
-The JA-112E (keyboard) is compatible with FW LU61501 and higher
-The JA-113E (keyboard) is compatible with FW LU61601 and higher
-The JA-118N (PG Bus Output Module) is compatible with LY68003 and higher
-FW version LY68002 and lower works only when the PG range is set in the F-Link up to a maximum value of 32.
-The JA-110I (section or PG bus indicator) is compatible only when the PG range is set in the F-Link up to a maximum value of 32.
Đặc tính kỹ thuật
Power supply | 110 - 230 V/50 - 60 Hz |
Back-up battery | 12 V, 2.6 Ah (not included in the product package!) |
Maximum battery charging time | 72 hours |
Max. continuous consumption from the control panel | 1000 mA |
Max. continuous consumption for 12 hour back up | 80 mA without LAN |
53 mA with active LAN | |
(with a 2.6 Ah battery) | |
Max. number of peripheral devices | 50 |
LAN communicator | Ethernet interface, 10/100BASE-T |
Dimensions | 268 x 225 x 83 mm |
Weight with B.Bat./without B.Bat. | 1809 g/919 g |
Event history | approx. 7 million latest events, incl. date and time |
Power supply | A (EN 50131-6) |
Classification | Security level 2/environment class II |
(in accordance with EN 50131-1) | |
Operating temperature range | -10 to +40 °C |
Average operating humidity | 75 % RH, without condensation |
Compliant with | EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3A1, EN 50131-6 ed. 2+A, EN 50136-1, EN 50136-2, EN 50581 |
Radio operating frequency (with the JA-11xR module) | 868.1 MHz |
Radio emissions | ETSI EN 300 220-1-2 (module R), ETSI EN 301 419-1, ETSI EN 301 511 (GSM) |
EMC | EN 50130-4 ed.2+A1, EN 55032 ed.2, ETSI EN 301 489-7 |
Electrical safety | EN 62368-1+A11 |
Operation conditions | VO-R/10, VO-R/1 |
Certification body | Trezor Test s.r.o. (no. 3025) |
-Xuất xứ tại Czech Rep, EU.
-Bảo hành: 12 tháng.
